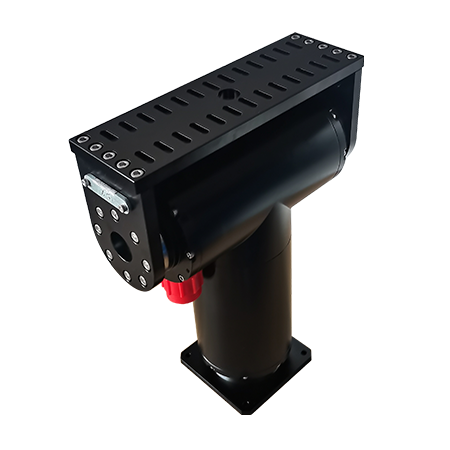

Product Name: Camera/Light Holder Underwater

Item Code: RCHP50

Input Voltage: 24VDC (22-26VDC)

Power: 80W

Maximum Torque: 50Nm, Biaxial Homogeneity

Execution Accuracy: 0.1°C, Biaxial Homogeneity

Maximum Angular Veloity: 10°/s, Biaxial Homogeneity

Operating Temperature: -10°C to -30°C

Angle of Elevation: ±90°C

Pendulum Angle: ±90°C

Payload Weight: 30kgs

Material: 6061-T6 Aluminium Alloy

Comminication Mode: RS485

Compensation: Oil-free compensation, G1/4

Install Way: Hoisting, Hoisting-upright

Weight In Air: 12.2kgs

Weight In Sea water: 8.7kgs

Electrical Interface: Subconn MCBH6M, Customized

Size: H328xW250xD80mm

Maximum Operating Water Depth: 6000m
